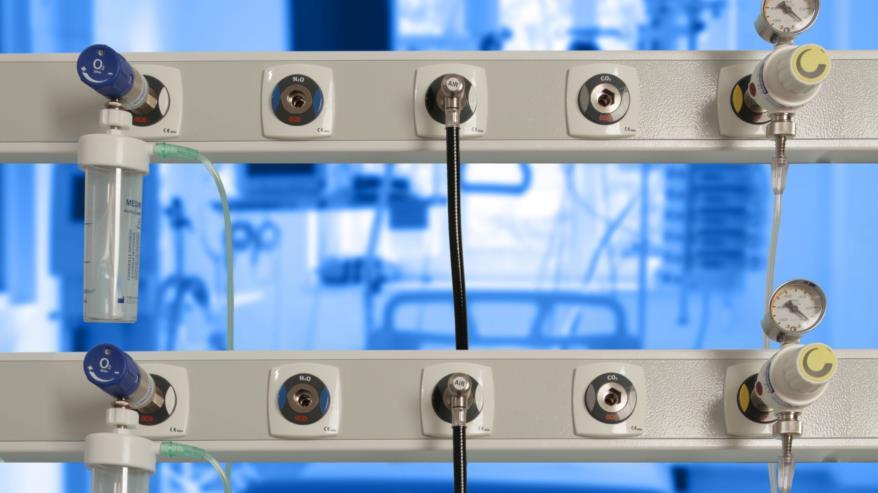

TERMINAL UNITS IN CENTRAL MEDICAL GAS SUPPLY

Medical terminal units enable a quick and easy connection of medical devices to the central gas supply in hospitals and rescue vehicles. They must be safe, robust and easy to use in all conditions. The type of gas outlet is dependent on national standards and/or local requirements. GCE MEDIUNIT gas outlets have been designed and built for this purpose. GCE MEDIUNIT gas outlets comply with the ISO EN 9170 standards (terminal units intended for use in medical pipeline systems) and are available in national standards: DIN, BSI, CZECH, NORDIC and AFNOR!

The GCE Mediunit undergo all the tests required to comply with the ISO EN 7396 (Medical Gas Supply System). This makes GCE MEDIUNIT the right choice for both the installer and the user.

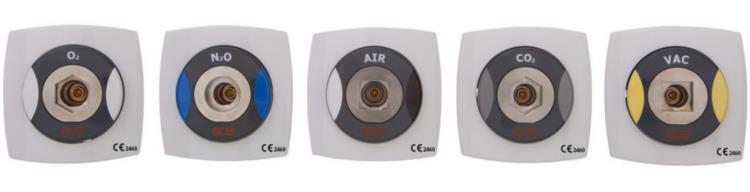

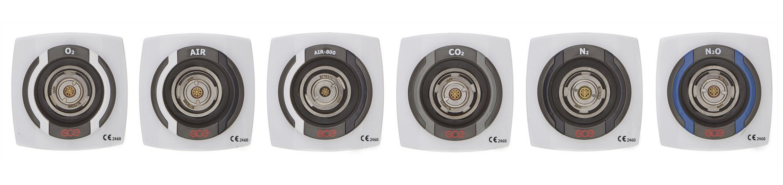

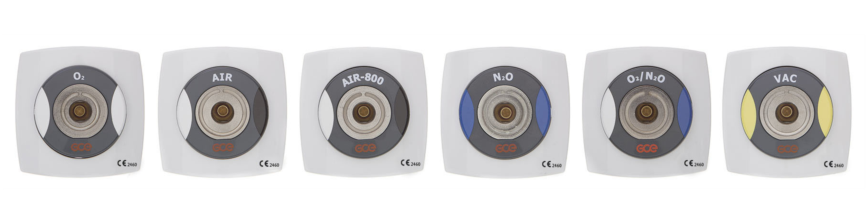

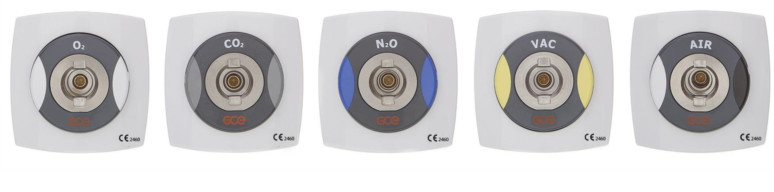

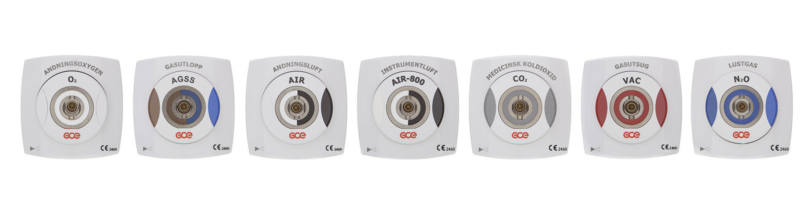

AVAILABLE FOR ALL MEDICAL GASES

DIN

BSI

NORDIC

CZECH

AFNOR

ADVANTAGES

GCE MEDIUNIT - DIN VERSION

• Small dimensions
• All functional components in brass
• Safety parking position
• Easy installation
• Easy to clean
• Quickly connect and disconnect medical devices
• Attractive design
• Flush, surface mounted and suspended
• Enters the standard for colour coding
• According to ISO 9170-1

USE / APPLICATION

GCE MEDIUNIT - DIN VERSION

• Gas-specific probe - MediUnit
• Gas-specific colour coding on MediUnit
• Firts insert is parking position
• In this position the probe is just fixed not pressurized
• There is no connection yet to the pressurized gas network
• Push the probe fully into the operational position
• In the operational position the probe is connected with the central gas network
• Pressure loss according to EN 9170-1

ACCESSORIES
FOR COMPLETE SOLUTIONS, YOU CAN PURCHASE ACCESSORIES FROM OUR GCE HEALTHCARE PRODUCT RANGE

HOSPITAL WARD EQUIPMENT

This product range is meant for use in medical facilities but can also be used in ambulances and emergency vehicles. Most of these products are used in oxygen therapy or suction. The product range includes a wide variety of devices for ventilation, like flowmeters, flow regulators and vacuum devices. For suction GCE offers a vacuum regulator, for connection to a central vacuum system, as well as a suction injector, who is driven by an O2 or Air terminal unit. Next to these main products GCE offers devices for humidifying, suction jars, flexible hose assembly´s, quick connectors and other accessories.

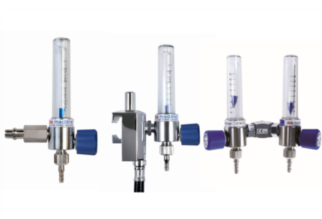

Medimeter

Medimeter is a gas flow meter that allows you to control and measure the amount of air and oxygen delivered to the patient.

Mediflow Ultra II

MediFlow Ultra II is the new generation of medical gas flow devices with integrated pressure regulator.

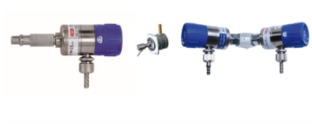

Medieject II

MediEject II is the second generation of GCE Healthcare suction ejectors. The device uses the principle of a Venturi system to create a vacuum.

Vacuum Regulator - Medievac +

MediEvac + is a vacuum regulator system that allows an efficient and safe control of the suction therapy.

MediConnect

GCE MediConnect are low pressure hose assembly´s for medical gases and can be supplied in a variety of connectivity options.
